The history of the poppy and of opium and their expansion in antiquity in the eastern Mediterranean areaProfessor Dr. P. G. KRITIKOS
S. P. PAPADAKI
Laboratory of Pharmacognosy, University of Athens, Greece
The following work, which was first published in the Journal of the Archœological Society of Athens, has been reproduced here with some editorial modifications and the omission, for reasons of space, of cumulative archœological and other evidence, and criticism pertaining to the history of opium in ancient times. The present number carries the first part of the paper which presents research about the poppy and opium among the ancient Greeks as well as among other peoples of the eastern Mediterranean region.
The succeeding number of the Bulletin will carry the second part of this paper in which the authors present numismatic evidence about the opium poppy, discuss the etymology of opium, the ways of extracting the raw drug, the methods of taking it, and the symbolic meaning that it came to acquire.
[ translated by George Michalopoulos]
The poppy and opium among the Ancient Greeks
A. The testimony of classical texts
B. The testimony of archeological discoveries in Greece
The poppy and opium among other peoples of the eastern Mediterranean and in India
The poppy plant and its hypnotic qualities were well known in the classical period of ancient Greece and are mentioned by contemporary writers. It was regarded as a magic or poisonous plant and was used in religious ceremonies. At a later date it was also employed in the art of healing.
The original of this article is in Greek.
The ancient Greeks portrayed the divinities Hypnos (Sleep), Nyx (Night), and Thanatos (Death) wreathed with poppies or carrying poppies in their hands. They adorned statues of Apollo, Asklepios, Pluto, Demeter, Aphrodite, Kybele, Isis and other deities in like manner. Sometimes ears of corn were added to the bunch of poppies.
Poppy-capsules, with or without the addition of ears of corn, are also found on figurines, bas-reliefs, vases, tombstones, coins and jewellery.
Legend has it that Demeter, in despair over the seizure of her daughter Persephone by Pluto, ate poppies in order to fall asleep and forget her grief. According to Ovid, she supplied Triptolemus also with poppies in order to induce sleep.
The poppy became one of the symbols of this goddess. On a basket at Eleusis it is portrayed in combination with ears of corn.
The poppy-head, with or without ears of corn, is found in the hands of statues of various gods of the nether world, and because of the multiplicity of its seeds, it is considered to be a symbol of abundance and fertility.
We propose to refer in detail, in the relevant chapters, to the spread of the poppy over the region primarily under review, down to the first centuries A.D.
The present study consists of an enquiry, from a purely "pharmaco-historical" viewpoint, into matters connected with the poppy. This enquiry has naturally been limited to the data we have been able to glean from a scrutiny of archaeological works available to us, or from an investigation of the findings of archaeological research in Greece.
On various points, more specifically those depending principally on archeology, our conclusions are not definitive and may require further archaeological research.
>A. The testimony of classical texts
The first written record of the poppy is found in Hesiod (eighth century B.C.), who states that in the vicinity of Corinth there was a city named Mekonê (Poppy-town): [ 1]
"For when the gods and mortal men were divided at Mekonê, even then Prometheus was forward to cut up a great ox and set portions before them, trying to beguile the mind of Zeus ".
According to commentators on Hesiod, [ 2] this city received its name from the extensive cultivation of the poppy in the area. Others, however, hold that it was because it was there that Demeter first discovered the fruit of the poppy, [ 3]
This prehistoric name of a city which previously had been called Aigialeis, Aigialê, Aigialeia or Aigialoi, was subsequently changed to Sikyon.
The poppy is also referred to as growing in the garden of Hekatê near Kolchis, as described in the Argonautica: [ 4]
"And there were overhanging grasses with roots sunken low,
And asphodel, and famed and lovely maiden's hair.
Yew and camomile and the black poppy
Mighty plants, and white hellebore and monkshood too
And many other baneful plants that grow upon the ground ".
Homer in the Iliad [ 5] also mentions the poppy:
"And as a poppy which in the garden is weighed down by fruit and vernal showers, droops its head on one side ".
In the Odyssey, Homer mentions [ 6] a drug, nepenthes, which Helen gave to Telemachus and his comrade to make them forget their grief. She had obtained the drug from the Egyptian Polydamna, wife of Thon:
"Presently she cast a drug into the wine whereof they drank, a drug to lull all pain and anger, and bring forgetfulness of every sorrow .... Medicines of such virtue and so helpful had the daughter of Zeus, which Polydamna, the wife of Thon, had given her, a woman of Egypt, where earth the grain-giver yields herbs in great plenty, many that are healing in the cup, and many that are baneful ".
Theophrastus (372-287 B.C.), [ 7] referring to this passage, states that there is no plant with the properties attributed to nepenthes. It seems that either he was unaware of it or doubted its existence, when he wrote: "they appear to be inventions of the poets ". This view is supported by other writers before and after Theophrastus who believed that the word "nepenthes" referred allegorically to the blandishments and charms of Helen. [ 8]
Diodorus Siculus [ 9] gives added information to the effect that it was reported that in his day the women of Egypt used the drug because only the women of Diospolis had in very ancient times discovered this antidote to anger and grief.
According to Theophrastus, l0 the Mantineian root-doctor, Thrasyas wrote that from the juices of the poppy and hemlock an easy and painless death could be obtained.

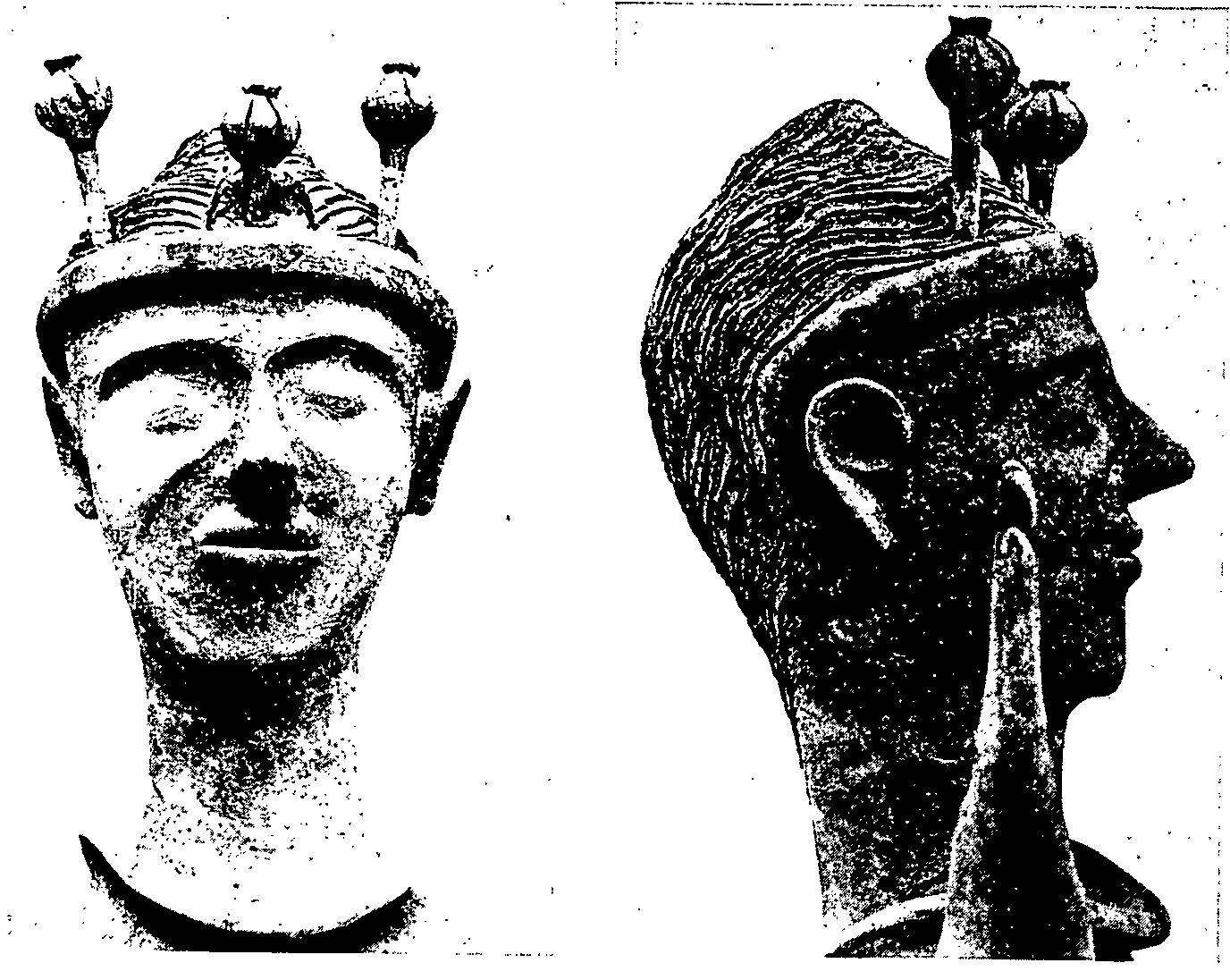

1. The Minoan goddess, her hair adorned with poppy-capsules (see p. 23)
Hippocrates (460-377 or 355 B.C.) makes frequent mention of the poppy as being used in medicinal preparations. He distinguishes between the white, fire-red, and black poppy. In regard to its therapeutic qualities he mentions the unripe, [ 11] ripe, [ 12] and baked [ 13] poppy. He also mentions poppy-juice [ 14] as a hypnotic, narcotic, and styptic drug; also as a cathartic. [ 15] Finally, he mentions the hypnotic poppy, and the great nutritive property of its seeds.
We also find the poppy mentioned in Aristotle (384-322 B.C.) as a hypnotic drug, [ 16] but the scientific definition of its species is not given.
Theophrastus also makes frequent mention of the poppy, [ 17] and lists the following categories: the black or horned poppy, [ 18] the "flowing" poppy [ 19] and the Heraklean poppy. [ 20] These three types of poppy, according to the experts [ 21] differ from the hypnotic poppy. Nevertheless, it is clearly evident from the above references that when the capsule of the poppy was split, juice flowed and was collected.
As regards the extraction of plant-juice in general, he writes that it is done "through the stalks as with the spurge and the lettuce and most plants, or from the roots, or thirdly from the head, as in the case of the poppy. The poppy is the only plant from which the juice is extracted from the head; this is peculiar to it. From the former plants the juice oozes out by itself like tears; this happens with the juice of the tragacanth, which need not be slit. In most cases the juice emanates from cuttings. Sometimes the juice is collected at once in jars, as is done with the juice of the spurge or the poppy. [ 22] The terms spurge-juice and poppy-juice are used interchangeably when the liquid emanates from plants with many openings."
Herakleides of Pontus (340 B.C.) writing in his work " On Government" [ 23] about the "Keian custom" (euthanasia), [ 24] makes the following statement: "Since the island is healthy and the population lives to a ripe old age, especially the women, they do not wait until they are very old for death to take them, but before they grow weak or disabled in any way, take themselves out of life, some by means of the poppy, others with hemlock". [ 25]
Theocritus [ 26] (310-245 B.C.) referring in his Idylls to the Temple of Demeter Alois, states that the goddess bore poppies in her hands.
Diokles of Karystos (fourth century B.C.) and Herakleides of Tarantum (third century B.C.) are said to have used opium but this is not definitely confirmed. [ 27]
Diagoras [ 28] (third century B.C.), the commentator on Hippocrates, states that Epistratos, one of the founders of the Alexandrian School (304-257 B.C.), disapproved of the use of opium for ear-ache and eye ailments, because it "dulled the sight and is a narcotic", whereas Mnisidemos considered that the only proper use of opium was "by inhalation for inducing sleep, all other uses being harmful". Dioskourides adds that experience proves this to be untrue.
Pliny the Elder says that both Diagoras and Epistratos rejected the use of opium for ear-ache, considering it to be a potent poison.
Andreas of Karystos (third B.C.), [ 29] physician to Ptolemy Philopator, states that "it is reported that if it was not adulterated those who smeared their eyes with it were blinded ".
In some texts mention is made of the adulteration of the so-called Egyptian opium in Alexandria. This opium is referred to later as Cyrenaic (opium Cyrenaicum) and Theban (opium Thebaicum). [ 30]
Celsus (first century A.D.) refers to lacrymœ papaveris as being used as an antidote, and an hypnotic and pain-removing drug. Scribonius Largus (first century B.C.) distinguishes opium ("a milky juice ") from mekonion which was according to him an emanation from the leaves (Compositiones Medicamentorum, pp. 21-22. Ed. Helmreich, Leipzig, 1887).
Dioskourides (first century A.D.) mentions several kinds of poppy, as follows:
The "flowing" poppy, so called because "it sheds its flower rapidly". [ 33] He adds that this poppy has hypnotic properties.
The cultivated or garden poppy [ 34] whose seeds are used in baking bread. In this category poppies with an elongated head and white seeds are called pouched.
He also mentions wild poppy with an involuted and elongated capsule and black seed which is called the "jar" poppy, and also by some the "flowing" poppy "because the juice flows from it". Another variety is wilder and more poisonous with a more elongated capsule.
When the leaves and capsules of these poppies are boiled in water, he writes, they induce sleep. As regards the juice he states that "when it is cooled and dried and taken in small quantities like vetch, it is harmless, induces sleep, aids digestion, relieves coughs and stomach troubles; when more of it is taken it plunges one into lethargic sleep and is very injurious ". He considers that juice to be most potent which is thick, "heavy in odour, soporific, bitter to the taste ".
Furthermore, he mentions the various ways in which the juice can be taken:
Some cut off the leaves and capsules, grind them in a press, rub them in a mortar, and make tablets of them. This product, he says, is called mekonion and is less potent than opium.
By slitting the fruit with a small knife "after the dew-drops have become well dried. The knife must be drawn round the crown without piercing the fruit within; then the capsules must be directly slit on the sides near the surface and opened lightly, the juice drop will come forth on to the finger sluggishly but will soon flow freely". [ 35]
The horned poppy, growing by the sea and wild. [ 36]
The foaming poppy, called the Herakleian poppy by some. [ 37]
According to Professor E. Emmanuel, who has made a special study of the Constantinopolitan Code of Dioskourides, [ 38] the "cultivated poppy" corresponds to the papaver somniferum, the "wild poppy" to the papaver orientalis, the "flowing poppy" to the papaver hybridum, the "foaming poppy" to the gratiola officinalis, and the "horned poppy" to the glaucium luteum.
Galen (second century A.D.) refers in parts of his works to the poppy [ 39] and to its several forms, [ 40] as well as to the specific nature of its seeds; [ 41] he also writes at length on the juice of the poppy "which physicians are in the habit of calling opium". [ 42] He also mentions [ 43] that because the juice flows forth from the poppy it has been called "flowing poppy". In the chapter on the Antidote of Philon, he writes that Philon states that the word opium ("opion" in Greek) is derived etymologically from the juxtaposition of the exclamatory O and pion = fat.
Regarding the use of opium, [ 44] Galen states: "Opium is the strongest of the drugs which numb the senses and induce a deadening sleep; its effects are produced when it is soaked in boiling water, taken up on a flock of wool and used as a suppository; at the same time some can be spread over the forehead and in the nostrils. If it is mixed with a drug that mitigates its power, its effects are greatly reduced."
Athenaios (second century B.C.) also makes frequent mention of the poppy. [ 45]
Pausanias [ 46] (second century A.D.) relates that the roof beams of the Philippeion in the Altis were held together by a bronze poppy, and furthermore that in the temple of Aphrodite at Sikyon there was a statue of the goddess seated, executed by Kanachos the Sikyonian, in which she was shown holding a poppy in one hand and an apple in the other. [ 47]
of Dioskourides, Athens, 1921. In this are mentioned also corresponding products defined by previous researchers (Coh., Daubenn, Bonnet, Sibthorp). On the products recorded by Dioskourides, research has been undertaken by J. Berendes in his work: Arzneimittellehre des Dioskourides, Stuttgart 1902, pp. 397-401.
Polemon, according to Athenaios (XI 478d): "Polemon in his treatise on the divine capsule says: 'After that, he performs the ceremony and grasps the objects from the recess and distributes them to those above carrying the vessel around. This vessel is an earthenware vase with many little cups glued within it. These contain sage, white poppies, grains of wheat, grains of barley, peas, vetches, lentils, beans, spelt, oats, fig pudding, honey, oil, wine, milk, unwashed sheep's wool. And he holding it up as though he were carrying the sacred basket tastes the contents' ".
Alex Tschirch [ 48] places the use of opium in the fourth-third century B.C., and states that, as its Greek name indicates, Roman physicians imported it from Greece or from the Greek colonies.
Apart from the Latin authors already quoted in relation to Greek authors, it is relevant to mention the statement made by Pliny the Elder, in which he says that the black poppy is hypnotic through the juice produced by the slitting of its bud at the beginning of its flowering. This is Diagoras's interpretation, but according to Jollas the slitting should take place after the flowering, at the bland time of day (three hours after sunrise when there is no longer any dew on the poppy). It is recommended that the notches should be made on the lower part of the capsule and calyx; it is the only type of plant on which the notches are made on the capsule. The juice, as in the case of every plant, is collected on wool, or, if the quantity is small, is broken off with the thumb-nail... It is then allowed to thicken and is kneaded into small loaves that are dried in the shade. This juice not only acts as a soporific, but if taken in large doses induces death through sleep, and it is called opium. Pliny also says that Diagoras and Erasistratos rejected it, forbidding it to be instilled into the eyes because it was a lethal poison and injurious to the eyesight, and that Andreas added that it did not induce blindness immediately, because in Alexandria it was adulterated. But he goes on to say that later, its use was not excluded in the famous preparation called diakodion (from the poppy-capsule). He also says that tablets are prepared from powdered seeds, and are taken in milk as an hypnotic. Opium mixed with rose-oil is used to cure headaches; this mixture is also used as eye-drops for the easing of pain. Mixed in woman's milk it is applied to the members of arthritics, as are the leaves also. Mixed with vinegar it is used as a cure for erysipelas and wounds. In any case Pliny does not approve of the use of opium in eye-washes, and definitely not in preparations to reduce fever. He further mentions that the black poppy in wine is prescribed for adbominal ailments, and that by boiling the capsules and leaves an infusion is made called "mekonion", whose effects are far milder than those of opium.
Besides the black poppy, Pliny [ 49] also mentions the papaver rhœas as an intermediate type between the cultivated and the wild poppy, and a third type, the euphorbia paralias [ 50] called "mecon" by some and "paralion" by others.
Virgil [ 51] also mentions the poppy frequently, as do many other Latin authors.
The above extracts from classical authors allow the following conclusions to be drawn.
That the poppy was known from the earliest times and is mentioned in the earliest recorded authors (Homer, Hesiod et al.).
It is not precisely established when the poppy-juice began to be used, though it was known in the fourth century B.C.
That two preparations emanating from the poppy existed:
The juice, extracted by notching the capsule, which from the time of Pliny was known as opium; and
Mekonion, an emanation from plant leaves and fruits of the poppy, used later, and which was less potent than opium. (Under the same name - mekonion - according to Hippocrates, the juice was pressed out and made into small tablets.)
That the name opium must derive etymologically from the word opos = juice, in spite of Galen's affirmation that it comes from o and pion = fat (the latter derivation is noted by Philon).
That the notches were at first circular and cut around the crown; and that later they were cut in straight vertical lines in the lowest section of the capsule (Dioskourides and Pliny).
That the poppy, including its leaves, blooms and capsule, was used in making various kinds of preparations, unadulterated or in mixtures, eye-washes, poultices and tablets.
That opium was more potent than mekonion.
That the use of opium as an hypnotic drug taken by nasal inhalation of vapours - the most suitable method of inducing sleep- was known, apart from its use through internal, oral consumption and external application (by means of poultices and eye-washes, and as a suppository).
Nec non et lini segetem et Cereale papaver tempus humo tegere et iamdudum incumbere aratris, dum sicca tellure licet, dum nubila pendent (I 212) urunt, Lethaeo perfusa papavera somno. (I 78)
Post, ubi nona suos Aurora ostenderit ortus, inferias Orphei Lethœa papavera mittes et nigram mactabis ovem lucumque revises. (IV 544)
That the seeds of the poppy had great nutritive value.
That the opium and the products of the poppy were hypnotic, pain relieving and narcotic, and that its juice mixed with hemlock induced a speedy and painless death.
B. The testimony of archœological discoveries
It has already been pointed out that scant data exist concerning the poppy in antiquity and in Greek mythology. They are preserved in the works of a few of the ancient writers (the Argonautica of Orpheus, Hesiod, et al.).
It has also been mentioned that it is only from the ninth century B.C. that Greek written records contain any information on the subject, and this seldom extensive.
More information and enlightenment, covering the period before that century as well as the classical age and subsequent times, are afforded by the considerable archœological finds resulting from the various excavations throughout Greece.
Prior to the 1950s, very little had been written about the poppy from the standpoint of the present enquiry; it was chiefly mentioned in archœological observations on its recognition as a symbol or an ornament on statues, vases, coins, etc.
In the sections that follow we deal with findings relating to the poppy that arise out of archœological research.
Our warmest thanks are due to Professor Sp. Marinatos for the wealth of information with which he has provided us concerning the various stages of our present study (Crete, Kozani, Ithaca, Attica and elsewhere).
We also warmly thank, in addition to those mentioned in special chapters, N. Karouzos, Member of the Academy; Professors N. Kontoleon, Max Robinson, and H. Wedeking; the Curators of Antiquities, N. Verdelis and S. Charitonides; the Directors of the Archœological Department of Cyprus, P. Dikaios and B. Karagiorgis; as well as the following archœologists: Miss A. Yiannoulatos, Dr. Chr. Kardara, Miss Char. Barla, Mrs. Rhea Kotionis and Miss K. Papapavlos. To all these persons we are grateful for their willing assistance in the task of compiling the bibliography.
We set forth below our findings in separate chapters, each dealing with a sector of the Hellenic Mediterranean area. We have included comparative information pertaining to the non-Hellenic parts of the eastern Mediterranean, as well as India.
The poppy in Minoan Crete
The surest and most ancient evidence concerning the poppy, the extraction of opium, and the use of both not only in Crete but in the whole Greek area, is that first uncovered in July 1959 as a result of an observation made on the gods of Gazi by Professor P. Kritikos, one of the authors of the present study. This was subsequently communicated to the Academy of Athens. [ 52]
It refers to one of the five figurines representing the Minoan goddess with "hands uplifted ", which were discovered at Gazi by Professor S. Marinatos. [ 53]
Of these five figurines, the first and largest, 775 mm in height (not counting the pins which rise 2 cm higher) has been called by Professor Marinatos "The Poppy Goddess, Patroness of Healing ", because it bears on the head three movable pins in the likeness of heads of the sleep-inducing poppy ( papaver somniferum) (Fig. 1).
The joint author of this study, P. Kritikos, has examined the figurine now in the Museum at Herakleion with a view to determining its pharmacological implications, and has formulated the following conclusions: [ 54]
The three pins on the head of the goddess do in fact represent heads of the opium poppy.
The vertical notches in the capsules, which are more deeply coloured, belong to one of the typical forms of poppy used for producing opium.
The carving of the capsules, then executed vertically, is different from the circular carving usual today, or the mixed pattern, circular around the top and then vertical as that of the figurine (Dioskourides, Pliny).
Of especial interest is the artist's rendering of the colouring in the notches: it corresponds with the colour of the dried juice of the poppy.
The Minoan goddess appears to have her eyes closed as though asleep.
Especially impressive are the folds in the cheeks giving a smiling effect, and the lifelessness of the parting of the lips.
Prof. Marinatos writes that other analogous representations of the Minoan goddess had already been found, with snakes wound around her forearms or doves upon her head (the goddess of the snakes; a chthonian or household deity,' and the goddess of the doves: a deity of the sky or of love). The goddess with the uplifted hands is frequently found over a wide area of the prehistoric world and was probably handed down from the Late Minoan III period to that of early Hellenic civilization in which the same goddess is found under various identities.
He expressed the opinion that a tubular vase discovered at the same site, and belonging, according to S. Marinatos [ 55] , to the equipment of the goddess, was used for preparing inhalations of opium. This receptacle had a base and a hole on the sides, and bore a remarkable resemblance to those used in Java in earlier times for the inhalation of the vapours of opium [ 56] (Fig. 2).
2. Left and centre: objects associated with the cult of the poppy goddess and found at the same site; right: a vase front Java for inhaling the fumes of opium
It is to be noted that the goddesses were found in a room (presumably sacred) enclosed on all sides, doorless and windowless, and obviously approached from above. On the ground were found the remnants of a heap of coal.
From the above observations he concluded that:
The poppy and the extraction of its opium through a vertical notch was already known at least at the time of the making of the statuette, viz. the Late Minoan III period- that is to say, long before the fourth third centuries B.C., as accepted in the bibliography up to that time.
This manner of notching survived in the East Indies up to the beginning of our century. [ 57]
The use of opium, for religious purposes at least, was known in Crete in the same period.
The significance of the poppy and of opium was such that to it should be attributed the special posture of the goddess with uplifted hands.
From the other objects found near the goddess (receptacles and coals), it must be inferred that the opium was taken by the inhalation of vapours.
The goddess appears to be in a state of torpor induced by opium; she is in ecstasy, pleasure being manifested on her face, doubtless caused by the beautiful visions aroused in her imagination by the action of the drug. For this reason he proposed that she should be called "the goddess of ecstasy '; and lastly
The passivity of her lips is also a natural effect of opium intoxication. [ 58]

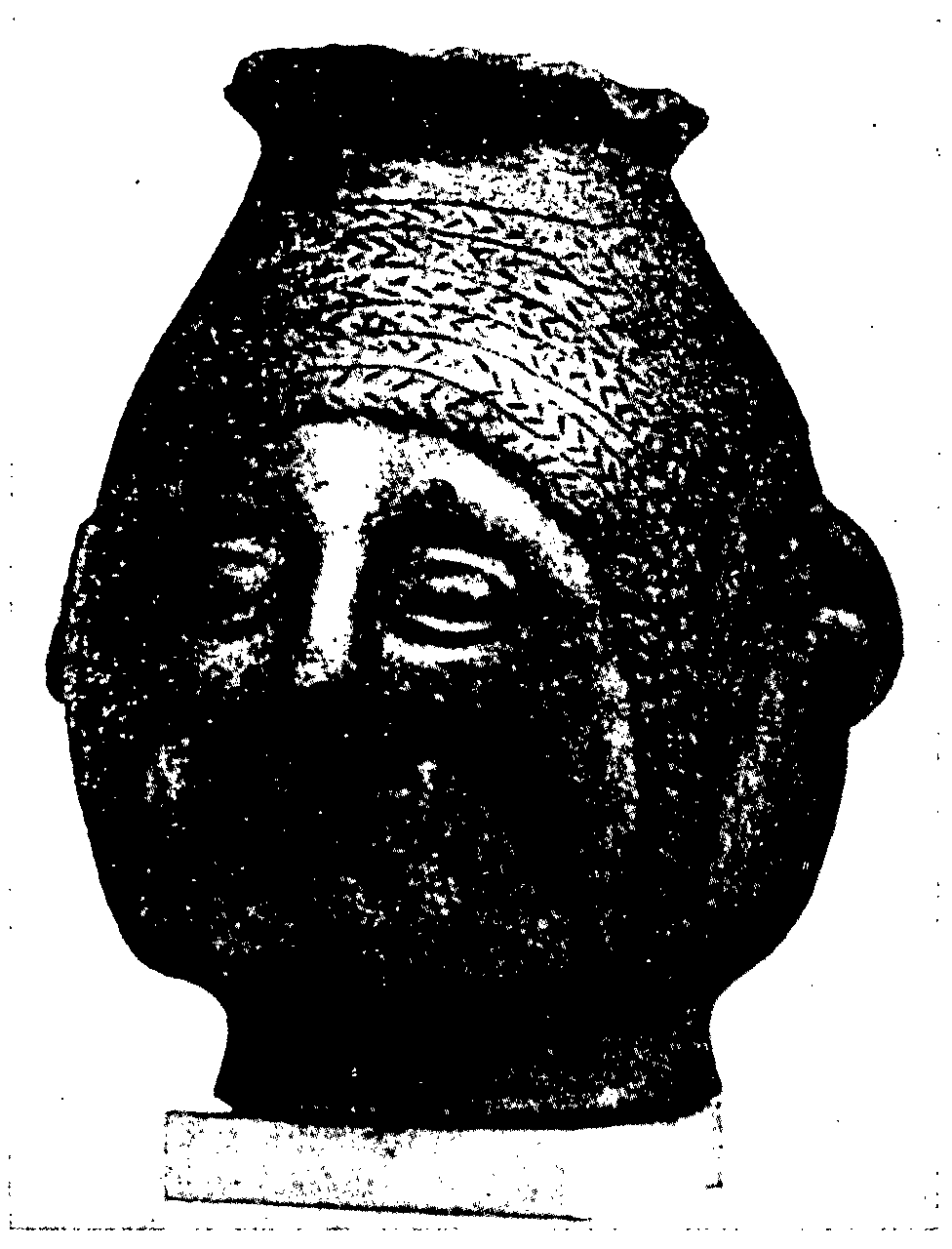

3. Receptacle for coca leaves discovered in a Peruvian tomb (See footnote 58)
The use of the poppy during the Minoan age was more widespread as is shown by further archaeological discoveries in other parts of the island. Thus, in a grave at Pachyammos in the district of Hierapetra, was found jar, shown in Fig. 4, of the Late Minoan III period (1300-1250 B.C.). On the body of the jar the poppy head is portrayed between the sacred horns and is guarded by birds. This reveals the sacred nature attributed toa

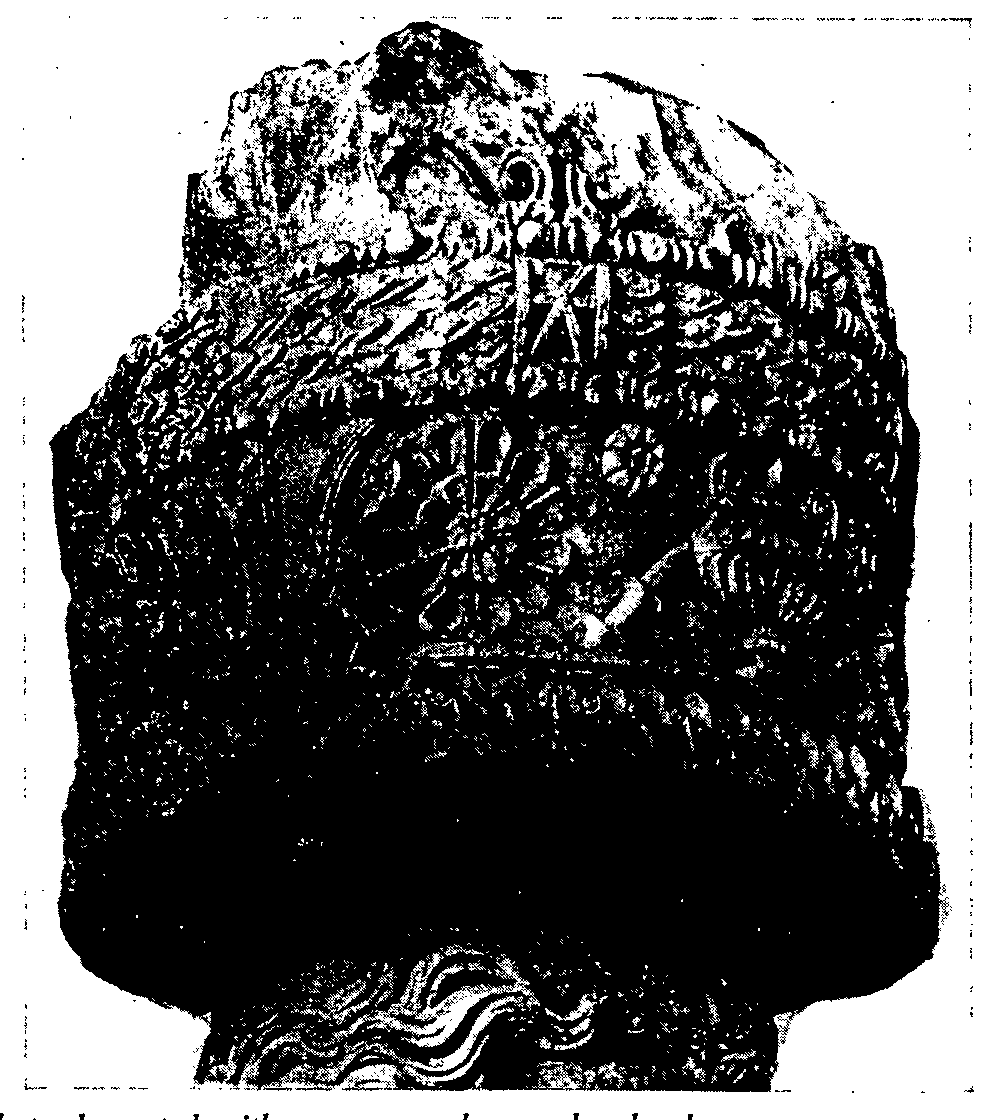

4. A covered jar with the sacred horns and the poppy motif
the plant by the Minoans. On the lid of the jar is the picture of a bird tearing apart the capsule of the poppy. [ 59]
Capsules similarly guarded by two birds are seen on a primitive Attic jar [ 60] (cf. "The Poppy in Attica ").
At Mouliana in Crete 6l there was found in a grave a pin 17 cm in length, the head of which was similar to those of Myceæan origin found in Mycenæ, Tiryns, Argos and other Hellenic areas, which, in our opinion, bear the shape of poppy capsules (cf. "The Poppy in Corinth ").
The foregoing observations lead to the conclusion that the poppy and opium were known to the Minoans.
Christian Zervos [ 62] writes that the poppy must be added to the list of the sacred plants of the Minoans because its capsule contains various narcotic substances which they considered as symbols of immortality.
We must note with especial emphasis the original peculiarity of the censers, commented upon by Professor Marinatos, [ 63] and other objects in the Herakleion Museum yielded by excavations in Crete, which from the nature of their workmanship may be assumed to have been used for taking opium by nasal inhalation.
The poppy in Cyprus
There is no recorded evidence of the spread of the poppy and the use of its juice in Cyprus as far as wecan ascertain from the bibliography available to us, while archaeological finds do not give a clear picture of the poppy.
In examining Cyprian vases discovered in Egypt, [ 66] which were hand-made (Fig. 5), and whose shape resembled that of the capsule of the opium poppy, he came to the conclusion that these vases were used for carrying pharmaceutical preparations emanating from the poppy.

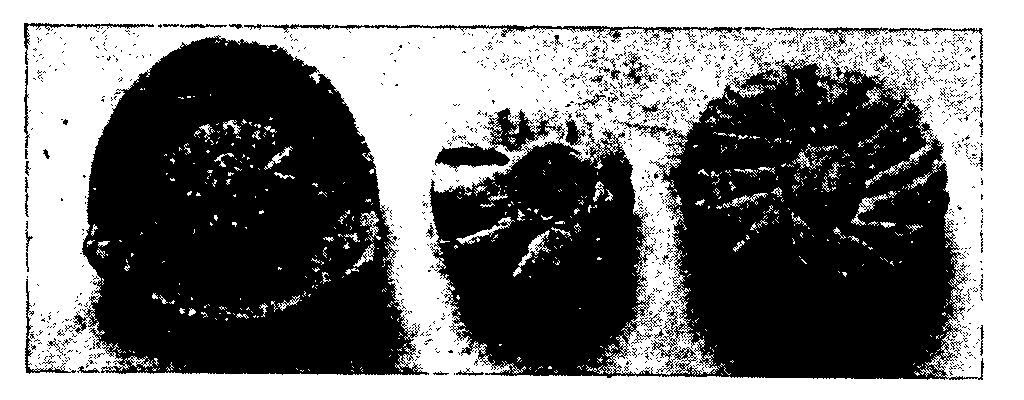

5. left, a poppy-capsule shown with centre and right, Cypriot vases discovered in Egypt showing resemblance with the form of the capsule
According to Merrillees, the capsule shape of the vases, in the absence of identifying inscriptions, was indicative of their content; and, since no leather or metal prototypes of these have been discovered, poppy capsules must have served as such for their manufacture. [ 67] Merrillees concludes that the Cyrpians of the last years of the Bronze Age appeared to be aware of the method of taking opium.
He writes that his view is supported by the dimensions of the vases with bases I and II, analogous to those of the poppy head, and by their chestnut colour corresponding to that of the notched capsule.
In some vases of the end of the fifteenth century B.C., one notices a change both in the base and in the decoration, which is painted on and not worked in relief. In certain vases of a transitional period both types of decoration are found.
The latter type of decoration, always according to this writer, [ 68] betokens an improvement in the method of taking opium: by means of an instrument on which many metallic blades were fixed close together, the capsule was notched more speedily and over a greater surface, thus permitting the extraction of as great a quantity of opium as possible. The painted white parallel lines must be the representation of the juice emanating from the corresponding notched surfaces; the juice would be white at first, then would become brown when it dried and thickened and was transformed into opium.
In fact, according to S. Gabra, [ 69] both the opium poppy and the pomegranate poppy were known to the Egyptians from antiquity.
Merrillees concludes from archaeological and bibliographical data that the original appearance of opium in Egypt in the form of preparations can be traced back to the XVIIIth Dynasty. These preparations were imported from abroad. The shape of the vases indicates that they must have been imported in liquid form, which would be easy owing to the solubility in water or wine of the components of opium.
He further mentions Gabra's comparison of the shape of porcelain containers with that of the poppy capsule, showing that the Egyptians must have been aware of the plant during the period of the XVIIIth Dynasty.70
He also relates the early importation in large quantities of vases with circular base I and the subsequent importation in lesser quantities of those with base II, after the Tel-el-Amarna period in which the porcelain copy-vases are found.
He further notes the reference made by Sciaparelli [ 71] to the effect that in the tomb of the architect Cha, who died during the reign of Amenhotep III, there was found an alabaster bucket containing vegetable oil " medicato con ferro e con opio ", i.e., a preparation including opium.
Finally, he concludes that during this last period in Egypt the cultivation of the poppy and the extraction of opium must have been known, so that it was no longer necessary to import it.
Merrillees's findings lead to the conclusion that during the period when the vases of category II were being made the capsule notches were no longer vertical but convergent.
We note, however, that both types of notching - the older and the newer - remained in use for the extraction of opium down to our century.

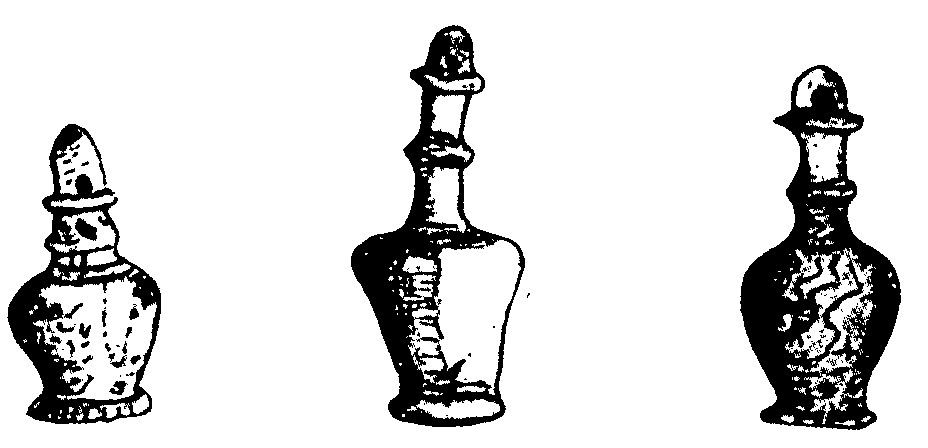

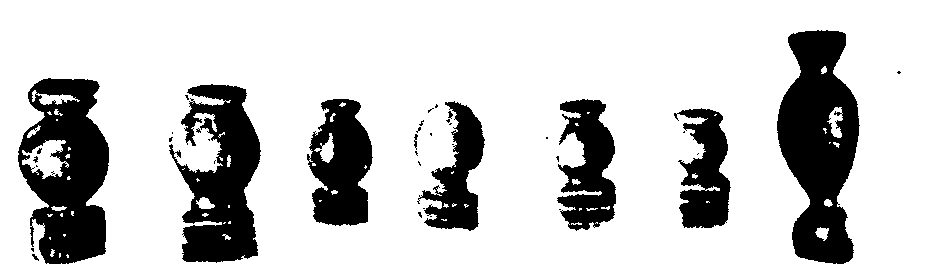

6. Vases of the late Cypriot I period (1600-1400 B.C.), inspired by the form of the poppy-capsule
In addition to these vases of Cyprian origin found in Egypt, a number of capsule-shaped vases have been found in Cyrpus itself as we were able to ascertain during our visit to the island. These were discovered in tombs in the course of excavations undertaken in previous years, and, more recently, by the Cyprus Archaeological Service.
Among these vases of the Late Cyprian I period (1600-1400 B.C.) three are to be found in the Nicosia Museum (Fig. 6). [ 72]
On some of these vases (e.g., Fig. 6, Vase B), clearly capsule-shape and with a base that is smooth and not pronged, we find two parallel vertical lines in relief; these correspond with the poppy-capsule notches from which the juice pours out. As the juice becomes solid, it appears to stand out in relief over the notch in a manner corresponding with the lines on the vase.
The double line on the neck of the vase shows the joint of the stalk to which the handle of the vase was attached.
Finally, in Cyprus, a necklace was discovered of multicoloured glass beads to which an amulet was attached (cf. "The Poppy at Corinth "). One of the beads shows incisions corresponding to the notches in a poppy capsule. [ 73] There was also found in Cyprus a considerable number of brooches with a head in the shape of a pomegranate, according to Jacobsthal. [ 74] These brooches are attributable to the Middle Bronze Age:
We wonder whether this case is not similar to that of the Ephesus brooches (cf. "The Poppy in Asia Minor and Eastern Thrace "), and whether the shape thought to be that of a pomegranate is not in reality intended to represent that of a poppy capsule.
In any case, we draw the attention of specialists to the similarity in shape of the Cyprian vases described, which are approximately of the same period.
The poppy in Mycena
Correlatively to the Minoan civilization, the Mycenæan civilization spread over many areas of Greece and was carried to Crete and Cyprus after the arrival there of the Mycenæans. Many similarities are found in the various symbols and manifestations of a religious nature in the two civilizations. Archaeological research has shown that the opium poppy was also known at Mycenae, and the most beautiful representation of its capsule appears on the famous golden signet-ring discovered on the Acropolis at Mycenae [ 75] (Fig. 7).
On this ring a seated woman receives an offering of three poppy capsules. According to Nilsson, this must be a goddess; behind her a small figure stands gathering fruit from the sacred tree. This shows that the goddess is associated with the worship of trees, "a goddess of tree-worship, therefore of nature and fertility, sitting beneath the tree itself", according to Professor Marinates. The first "worshipper" offers the poppy capsules, the second brings lilies, while the third bring flowers. Then Mioan symbols (the palladium and the double axe) also appear in the composition.
7. The top of a signet-ring from Mycenæ showing poppy-capsules in the centre

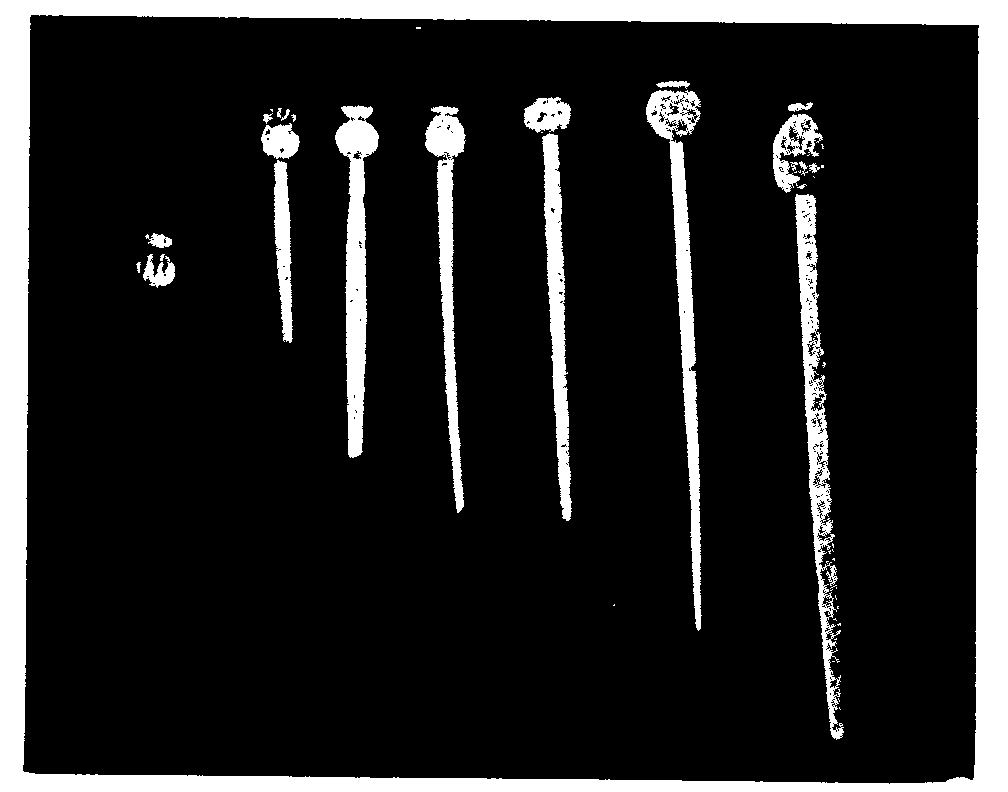

The royal tomb III at Mycenæ also yielded brooch pins (sixteenth century B.C.) of especial interest since their head is capsule-shaped. Jacobsthal [ 76] describes such a pin (Fig. 8), 27.7 cm in length, found in grave III.
8. A brooch pin from the royal tomb III in Mycenæ
According to him the head probably represents an apple. It is made of cloudy-brown mountain crystal and is grooved. This pin is also described by Karo. [ 77]
In our opinion, this is a pin with a poppy-capsule head from which the star-shaped crown is missing, probably as a result of oxydation. The notches for the extraction of opium are dearly marked; an apple obviously would not be grooved. Similar to this pinhead is that of a silver pin [ 78] (Fig. 9) which also has vertical slits. Another was found at Vaphio in Laconia (Fig. 10), and the discovery was published by Tsountas. [ 79] Its head not only represents the capsule of a poppy but bears the characteristic notches for opium extraction
According to some archaeologists, [ 80] these pins because of their great length do not conform to the usual type of pin used for clothing or hairdressing. We wonder whether they may not have been needles used in the process of smoking opium.
A bone amulet found on the Acropolis at Mycenae and exhibited at the Archaeological Museum there (No. 2671), is a characteristic representation of a grooved

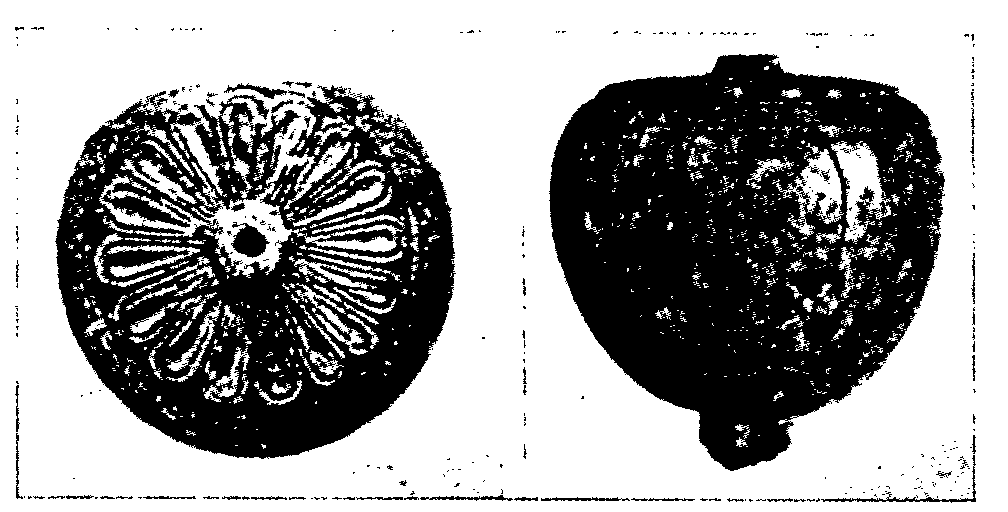

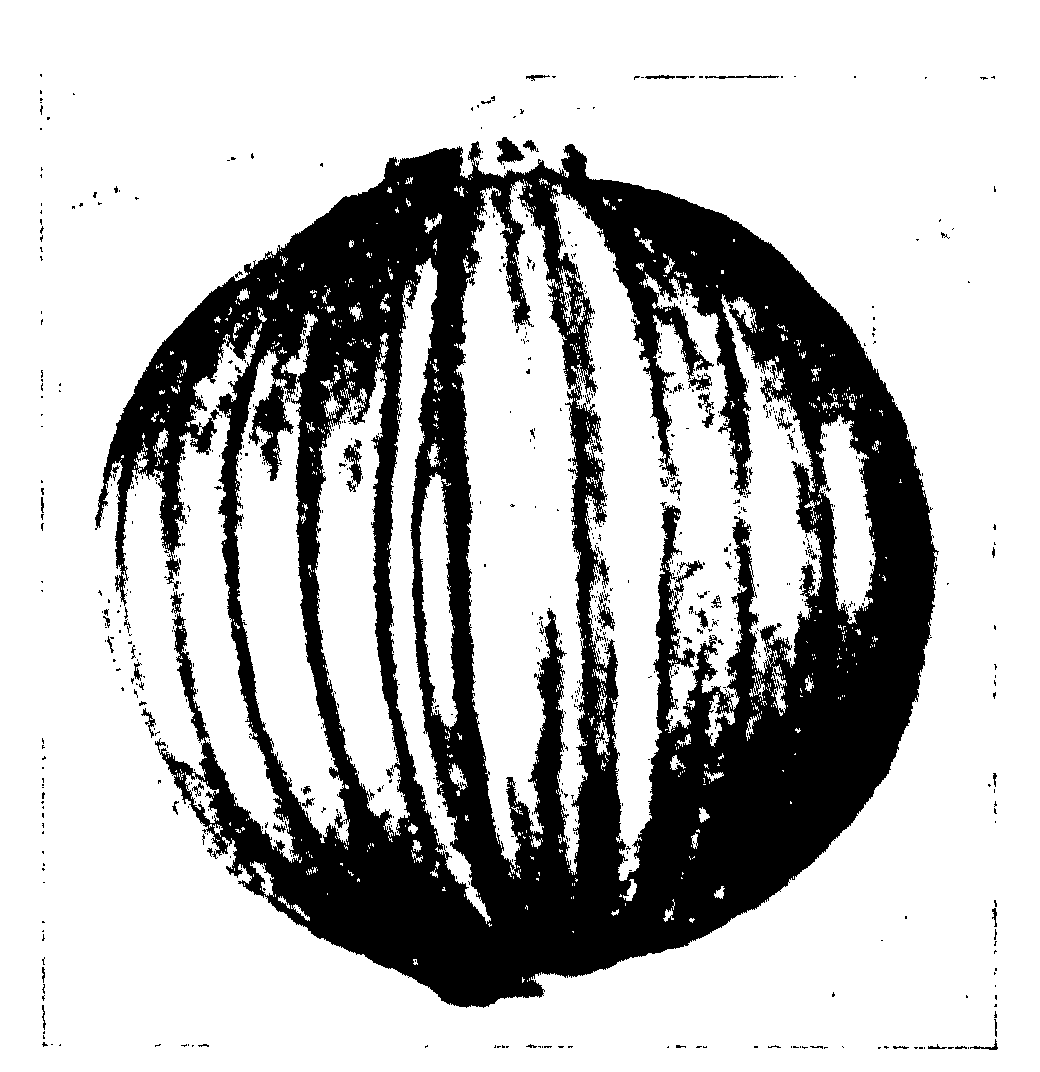

9. Pin-head in silver
10. A brooch-pin from Vaphio
poppy-capsule. Similar to this are amulets displayed as exhibits Nos. T516 et T518 in the same museum.
Furthermore, we should like to draw the attention of the experts to the similarity in shape and size of certain small containers (aryballoi). These are usually believed to have been used for perfume. We suggest, however, the possibility that preparations of opium may have been placed in them, particularly if we accept Merrillees's theory about capsule-shaped vases, which we believe to be correct.
The discovery of more containers, the contents of which might by modern methods be identified on the basis of an infinitesimal quantity of substance, could possibly shed light on this question. It is a known fact that a similar vessel containing oil mixed with opium was found in Egypt (cf. "The Poppy in Egypt ").
From what precedes, it may be deduced that the poppy and its incision for the extraction of opium were known at Mycenae at least in the sixteenth century B.C. (Late Mycenaean I Age).
The poppy at Argos and Tiryns
A number of objects discovered by archœologists and pertaining to various periods of Argive history disclose ornaments that may represent a poppy-capsule. For example, clay figurines of Tirynthian and Argive goddesses have been found which are reminiscent of those of Corinth and which appear to us to be fashioned in the shape of a capsule.
Similarly, figurines of the First Archaic (Protoarchaic) Period have been found in which the goddess holds a round fruit. This, according to Waldstein, [ 81] may represent an apple; we do not believe this definitely proved. It is true that Pausanias states that Hera held a pomegranate in her hand, but the same author reports that at Sikyon there was a statue of Aphrodite by Kanachos in which the goddess was represented as holding a poppy. [ 82] It is therefore quite possible that in some of the figurines the round fruit actually represents a poppy capsule.
Charitinides, writing about the pomegranate, believes that in the case of many figurines there is a confusion between that fruit and the poppy-capsule, and states that in the Museum at Argos there are three intact late-geometric pomegranates with a wrinkled surface.
Also at Argos were found capsule-shaped vases similar to those at Mycenae, as well as small alabaster or clay containers.
The poppy and opium in antiquity (eastern Mediterranean area) 29
Especial interest attaches to the pins, many of which are to be seen in the Museum at Argos, and whose heads may be assumed to be in the shape of poppy capsules. In some of these the body of the capsule is composed of semi-precious stones, as in those referred to by Waldstein; [ 83] they are comparable to those at Mycenae, Tiryns and Corinth.
The contact indicated by these archaeological findings between Egypt, Cyprus, Crete, and cities of ancient Greece (Mycenae, Argos, Eleusis, etc.) is worthy of note. This is made clear by the findings in many predominantly Hellenic areas. Thus at Eleusis, Argos, and elsewhere, scarabs have been found bearing the name of Thutmosis III. The origin of some of these is not clearly established. They may have come directly from Egypt or been carried by Phoenicians to Egypt and thence exported to Greece.
11. A platter from Tegea showing a nude figure holding the poppy
The poppy at Tegea
The poppy has been found in excavations at Tegea.
On a sheet of bronze in the shape of a tray a nude is shown (Fig.11) holding a fruit in her hand. According to Dugas [ 84] and Oikonomos, [ 85] this is a pomegranate; Mueller [ 86] believes it to be the capsule of the hypnotic poppy.
In our view, the fruit represents the capsule of a poppy, because of the presence of a circular line in the middle of the capsule corresponding to one of the methods of incising the capsule in order to obtain opium.
In this area were also found pins similar to those discovered at Corinth, Perachora, Ægina and Tenos. [ 90]
At Tegea weights were discovered whose shape according to Dugas [ 91] was that of a pomegranate. We believe that many of them (Fig. 12) are clearly in the shape of the poppy-capsule. Possibly they were used for weighing opium.
12.Weights in the form of the poppy-capsule discovered in Tegea
The poppy at Sparta
From the texts we already know that Helen of Sparta made use of the nepenthes drug [ 92] which we believe to have been a concoction of opium.
There are indications in Sparta to prove that the poppy was known there in antiquity.
Dawkins [ 93] mentions many findings from the sanctuary of Artemis Orthia at Sparta which, when compared with the objects discovered in Corinth, are, in our view, related to the poppy-capsule.

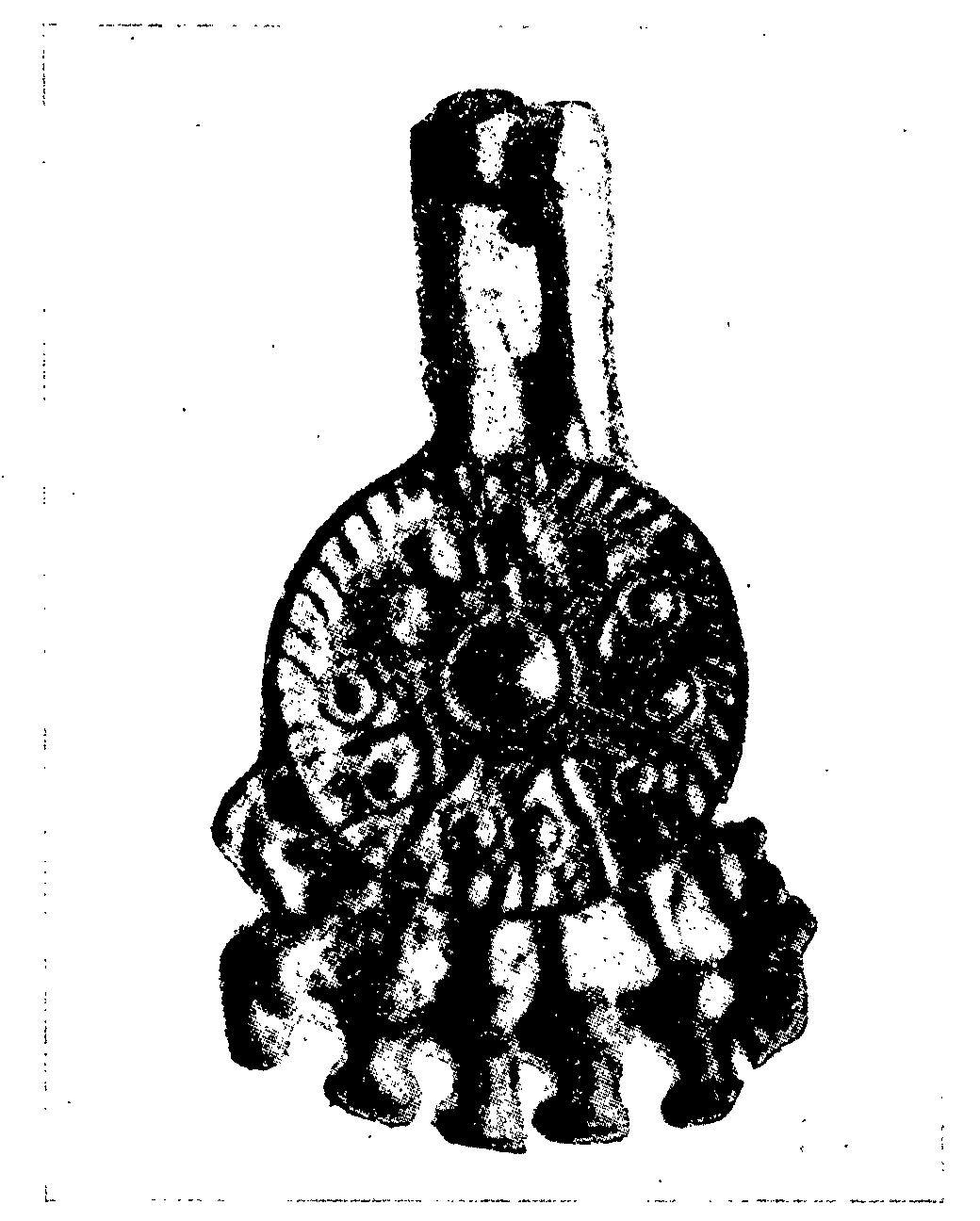

In the pendant shown in Fig. 13 [ 94] hanging objects appear which, we believe, represent capsules, corresponding to similar objects found in Mycenae and Egypt.
13. A pendant adorned with poppy-capsules
The bone pendants [ 95] shown in Fig. 14, which were obviously worn around the neck, also seem to represent poppy-capsules.
14. Pendants in the form of the poppy-capsule
Furthermore, seventh century B.C. bronze pendants [ 96] bear the shape of poppy-capsules in direct contrast to that of a pomegranate flower displayed next to them (Fig. 15).
15. A pendant in the form of a poppy-capsule (left) shown with another in the form of a pomegranate blossom (centre) and right, the latter flower itself
Certain discoveries made during the excavations in 1909 at the Menelæion in Sparta, reputedly the palace of Menelaus and Helen, are of particular interest in an inquiry into the history of the poppy. They were as follows:
Bronze pendants in the shape of a pomegranate bud or of a poppy seed, according to Thompson [ 97] shown in Fig. 16. We consider them to be clearly representations of poppy-heads, particularly since they bear the characteristic notches for the extraction of opium.
A silver-gilt pendant [ 98] in the shape of a poppy head with slits on it.
All of these pendants were dedicatory offerings and correspond to those found in the sanctuary of Artemis Orthia.
16. Pendants from Sparta
We also note the existence of many pins [ 90] in Vaphio in Laconia, in the sanctuary of Artemis Orthia at Sparta (Fig. 17 right), and in the temple of Aphaia at Ægina (Fig. 17 left). By some these pin-heads are presumed, in our view wrongly, to represent pomegranate buds.
From the texts already quoted we know that there was in the vicinity of Corinth an ancient city called Mekone by Hesiod, and later named Sikyon. According to some commentators on Hesiod, [ 100] the city owed its name to the extensive cultivation of the poppy near its site. Others consider that it was called Mekone because Demeter there first dicovered the fruit of the poppy.
Professor Marinatos [ 101] mentions that a local legend held that Demeter presented the poppies in person to the city.
17.left and right, pins from Ægina and Sparta respectively
The only definite information given by a classical author is that in Pausanias [ 102] according to which a statue of Aphrodite stood in the temple of the goddess at Sikyon; in one hand the goddess held a poppy, in the other an apple.
Whilst the texts give a very poor yield, the objects unearthed by the archœlogist's spade in the region have brought forth a rich harvest of information which complements and even confirms or explains what is gleaned from the texts.
Many reproductions of the poppy-capsule in clay have been found and are now deposited in the Museum at Old Corinth. A typical reproduction of the capsule is that found by Verdelis [ 103] at the sanctuary of Solygeia near Galataki (Fig. 18). This is beautifully fashioned, and does not bear notches. Verdelis considers it to have been an offering connected with the worship of Hera.
18. Poppy capsule in clay
It is 6.5 cm in length including the stalk and 3 cm in diameter, and clearly shows the body of the capsule and the point (Dioskourides's asterisk), as well as the stalk with its "knee ". The appearance of the capsule when viewed from above, as well as that of capsules in Fig. 19, reminds us of the pins on the shoulders of goddesses in figurines of various areas, especially noticeable in the figurines from Galataki. Fig. 19 (a) is an offertory plate with a clay capsule-shaped protuberance in the centre.
19. a, an offertory plate, and b and c, fragments from other such ware
The poppy in Corinth and its environs (Sikyon, Perachora, Corinthian Gulf)
The spread of the poppy in this area is especially interesting. There are numerous archœological finds on which the poppy-capsule appears in various forms.
Fig. 20 right in stone is the object discovered in 1955 by Professor Oscar Broneer at the sanctuary of Palaimon in Isthmia (diameter 92 mm; in Corinth Museum, No. I.M. 1006), and also the metal object (Fig. 20 left), represents a shepherd or peasant holding the fruit of the poppy in his right hand. [ 104]
20. Objects from Palaimon, the one on the right being in stone and the ones shown in the two other pictures being in metal
found in the same area (to the north of the Temple of Poseidon in Isthmia) on 28 May 1954 (Corinth Museum, No. I.M. 74). The object shown in Fig. 20 is probably a weight and it resembles the poppy-capsule.
In the area of ancient Pheneos the bronze statuette shown in Fig. 21 was found two years ago and is now in the Museum at Nauplion. According to N. Verdelis, Keeper of Antiquities in Attica, who discovered it, it represents ashepherd or peasant holding the fruit of the poppy in this right hand. [ 104]
21. Bronze statuette from ancient Pheneos holding the fruit of the ppoppy in its hand
Throughout the Peloponnese, and also in other areas of Greece, a great quantity of pins has been found, the heads of which are characteristically capsule-shaped and sometimes notched horizontally or vertically for the extraction of opium. Some of the more representative of these are shown in Fig. 22. [ 105] All these pins are made of bone and date from the second and first centuries B.C. and there are many others from other sites.
pins made of bone found in many parts of Greece with the pinheads in the form of the poppy-capsule
Gabra [ 106] notes that there is a relationship between the shape of the pendants and beads that have been found in great number, and that of the poppy-capsule.
Bronze statuette from ancient Pheneos holding the fruit of the poppy in its hand
Bronze statuette from ancient Pheneos holding the fruit of the poppy in its hand
21 . Bronze statuette from ancient Pheneos holding the fruit of the poppy in its hand
Pins made of bone found in many parts of Greece with the pin-heads in the form of the poppy-capsule
Such notched pendants and beads have also been found at Mycenæ.
Bone or brass capsule-shaped pendants [ 107] have also been found. Payne describes one of these as having the shape of an inverted poppy-capsule. [ 108] A similar one was discovered at Lindos. He mentions that similar pendants have been discovered in Samos; a report of these discoveries has not yet been published. Many of the pendants are of the seventh century B.C.
23.Vases in the form of poppy-capsules discovered near CorinthA considerable number of capsule-shaped vases, if Merrillees's view is finally accepted - a view with which we agree - has been unearthed during the excavations on the shores of the Gulf of Corinth. Fig. 23 shows some of the more representative vases, a few of which also have notches.
It may be concluded that:
In the whole Corinthian Gulf area, from Sikyon to Perachora, the poppy was known and greatly honoured as early as the ninth century B.C.
Its capsule is found as an offering in the form of clay reproductions or capsule-shaped balls.
Its capsule is found reproduced on brooches, pendants, necklaces or beads adorning images of gods.
Pins with heads which are clearly capsule-shaped are found in large numbers.
There are vases of various substances in the shape of the poppy-capsule.
The poppy in Attica and Bœotia
From the texts as well as from archœological finds, we see that the poppy was known in this area, especially during the last centuries B.C.
Of particular interest is the statue of Demeter found in the ancient Agora in 1907, on which Oikonomos reported [ 109] and which dates from the end of the fifth or the beginning of the fourth century B.C. Demeter is seated and, according to Oikonomos, is holding in her hand an ear of wheat and a poppy (Fig. 24).
24.Astatue of the goddess Demeter discoverd at the agara in Athens ;the detail schows her clutching an opium poppy with an ear of wheat
25.An early Attic jar with the poppy motif in its decoration
A similar statue of the goddess with ears of wheat and poppy-capsules is to be seen in Copenhagen, another at the Capitol, and others in the Chiaramonti Museum of the Vatican and in the Archœological Museum at Athens; [ 110]
During the Agora excavations a proto-Attic pitcher was discovered [ 111] on which two birds are portrayed; between them is drawn a circle of spokes at the end of which are fruit which seem to represent poppy-capsules (Fig. 25).
Eleusis, in Attica, was more especially set apart for the worhsip of Demeter, goddess of agriculture, and her daughter, Persephone.
On the famous basket on the head of the Caryatid of the Small Propylaia (Fig. 26) ears of wheat and the heads of poppies - the two principal symbols of the worship of Demeter - are carved.
From the foregoing it is clear that the poppy and the wheat-ear were both attributes of the divinities of Eleusis. Many consider that both, appearing on statues and various other representations, were symbols of plenty.
The poppy in Macedonia
The poppy was likewise not unknown in this area. Thus:
In the Hippocratic period the poppy was known to the Macedonians, and its existence is mentioned as an ornament on the rooftop of the Philippeion erected at Olympia in honour of Philip. [ 112]
Its hypnotic properties were known at this time as is mentioned by the tutor of Alexander the Great, Aristotle. [ 113]
A small bronze object found at Kozani and now in the Museum in that town - obviously of local origin and of the geometric period (700 B.C.) [ 114] - confirms the fact that the poppy [ 115] was known in the area (Fig. 27). The spherical section of the object presents a resemblance to the poppy-head, bearing the characteristic notches for opium extraction.
26. The Caryatid of Eleusis balancing a basket, decorated with poppy-capsules, on her head
27. A bronze object from Kozani with an anthropomorphic top and the base in the shape of a notched poppy-capsule
The whole appearance of the object gives the impression of a direct connexion between it and the therapeutic action of the poppy. The figure seated on the capsuleshaped base is either pointing to or is holding his head with his left hand. It is possible, we think, that this work suggests the well-kown pain-relieving and hypnotic effect of the drug.
The poppy in the Ægean Islands
We have already seen from the texts that the poppy was, according to some writers, used as a means of euthanasia (the Keian custom), and also that hemlock with poppy produces a swift and painless death. Beyond this, there is, as far as we know, no mention in the classical texts of the use of the poppy in the Ægean Islands.
The archœological excavations at the site of the Heraion in Samos have yielded interesting results in that among the finds the poppy is represented.
Professor E. Homman Wedeking was kind enough to inform us by letter that at the Heraion of Samos a number of reproductions of the poppy have been found, in clay and in ivory. Publication of these finds has not yet been made but he has sent us the two photographs in Fig. 28 of objects of the seventh century B.C. typical of six or seven similar objects now in the Archœological Museum at Vathy, Samos (Nos. 6059, 6062).
We believe that some of these were probably buttons on a peplos and others ornaments of a sceptre.
Poppy heads from the Heraion of Samos made in clay and ivory
In Rhodes we find pins of the Mycenæan and Argive type previously described, such as that discovered in a grave at Ialysos [ 116] attributable to the Late Minoan Period.
The poppy in Asia Minor and Eastern Thrace
In these areas also we find the poppy portrayed on archœological remains, especially pins which seem to represent the poppy capsule. In some there are characteristic notches to represent extraction of opium.
To complement our present account of the poppy and opium among the Greeks we shall refer briefly to the spread of these among other peoples of the eastern Mediterranean.
The Egyptians, the Sumerians and their successors, the Assyrians, the Hebrews, the Phoenicians and the Persians developed considerable civilizations during this period.
In fact, the Phoenicians with their vessels contributed greatly, with other maritime peoples, to the communication and exchange of views in this area.
The poppy in Egypt
Older writers state that among the primitive Egyptians and Semites the poppy and its culture were either unknown or had remained unobserved, [ 117] and that the poppy was introduced from abroad and particularly from Asia Minor.
In the most ancient monuments or wall inscriptions of the earliest temples of those peoples, the flower, the fruit and the seeds of the poppy were absent. [ 118]
Schweinfurth [ 119] holds that the poppy was not an ancient Egyptian plant but was introduced into Egypt shortly before the Roman era.
From the texts it may be deduced that the hypnotic poppy was introduced and cultivated in Egypt and Cyrenaica at a later period. There is fuller information about the cultivation of the poppy and the preparation of opium in Egyptian Thebes - whence the term Theban opium - about the time of the birth of Christ.
Galen writes that the preparation of opium had been taught to mortals by the Egyptian god Thoth, who in later years was called Hermes Trismegistos.
On the other hand, Gabra has shown the exact contrary, namely that the poppy and opium were known much earlier; he bases his view on the following:
In a tomb of the XVIIIth Dynasty an oleaginous ointment containing morphine was found. [ 120]
During Davis's excavations at Biban-el-Molouk in 1908 two ear-rings (Fig. 29) were found which, accord ing to Maspéro, represent pomegranates, [ 121] while according to Gabra they represent poppy-capsules. In the reasons he gives for so defining them, Gabra states that the grooves appear to be identical with the notches of the poppy-capsule.
Davis further mentions the discovery at Tel-el-Amarna of blue porcelain vases in the shape of a poppy-capsule, and concludes that the plant was of especial economic importance to Egypt in the Greco-Roman period, as is deduced from the writings about the garden poppy of Dioskourides, Theophrastus, Pliny the Elder and Serapis.
Moreover, mention is made of opium-seeds in the Greco-Roman papyri of Oxyrhynchus and Zeno, while in the Petrie III papyrus it is asserted that the cultiva tion of the poppy and other plants was spread over the whole area.
A pendant discovered at Biban-el-Molouk with a hanging cluster of poppy-capsules
According to some authorities, the poppy-juice is mentioned under the name seter-seref in the Ebers papyrus (1500 B.C.).
According to Gabra, [ 122] the poppy is there referred to as shepenn [ 123] and its description coincides with that of the later Coptic medical papyrus, known as the Chassinat papyrus in which, as Gabra states, opium is mentioned twenty-two times as being used principally for external treatment in the form of eye-drops, ointments, or powders.
In his conclusions, Gabra [ 124] mentions:
That the use of the products of the poppy was continued through the centuries and that the term opium, as has been previously stated, is found in the Greco-Roman period and was adopted by the Copts;
That opium was used in antiquity as a pain-reliever and narcotic medically, as it is used today; and
That opium was very well known and indeed a famous drug in Egypt, where many districts were noted for its preparation.
Merillees's study previously mentioned (cf. "the poppy in Cyprus ") completes the history of the poppy and opium in Egypt.
As regards the Papaver Rhoeas, Gabra states that it is found on tombs and monuments of the XVIIIth to the XXIInd Dynasties. [ 125] On mummies of the XXIst Dynasty we find flowers and leaves of this poppy, and poppy flowers have been identified in the garlands of the Princess Nsikounsu.
The poppy and the Sumerians
The first and most ancient testimony concerning the poppy is given on a small tablet of white clay found about fifty years ago during excavations at Nippur undertaken by the University of Pennsylvania Archaeological Mission. Nippur was the spiritual centre of the Sumerians [ 126] and lies to the south of modern Baghdad.
The tablet is inscribed in cuneiform script.
Among these tablets, one, deciphered by Samuel Noah Kramer and Martin Leve, is considered to be the most ancient pharma
Harry G. Anslinger and William F. Tompkins [ 127] report that on the clay tablets of the Sumerians it is written that the juice of the poppy was collected very early in the morning, which is evidence that the Sumerians cultivated the poppy in order to extract opium 5 000 years B.C., and also that they called it " gil " which means happiness or joy, and that this term is still used for opium in certain parts of the world.
These authors are of the opinion that the Babylonians, inheritors of the Sumerian civilization, were those who, with their expanding empire, extended their knowledge of the properties of the poppy eastwards to Persia and westwards to Egypt where its use as a curative drug for human diseases was known very early, from the year 1 500 B.C.
Terry [ 128] states that he was informed by Professor R. Dougherty, Curator of the Babylonian Collection at Yale University, that opium must have been known to the Sumerians because they had an ideogram, " Hul Gil ", corresponding to this drug.
We believe that these writers, possibly through a typographical error, state that opium was already known in 5000 B.C., whereas the Sumerian State flourished in the third millenium B.C., that is, about 5000 years before our time. The written records discovered are of the end of the third millenium B.C.
The poppy, the Babylonians and the Assyrians
Reginald C. Thompson [ 129] has no doubt that opium was known to the Assyrians in the seventh century B.C., and maintains that it was called " Hul Gil " and not, as was formerly thought, "stink cucumber ".
copoeia in existence. (Samuel Noah Kramer, " First Pharmacopoeia in Man's Recorded History ", American Journal of Pharmacy 126, 1954, pp. 76-84).
It appears that most of these tablets were written about 1700 B.C. A few are more ancient.
The tablet in question includes a considerable number of prescriptions collected by a Sumerian physician, and it is reported that it was written around the end of the third millenium B.C.
From 2225 B.C. the Sumerian territory was a part of the land of the Babylonians (The Assyriobabylonian State, which, in 607 B.C., was subjugated by the Persians).
He reinforces this view with the following quotation from a cuneiform tablet: "Early in the morning old women, boys and girls collect the juice, scraping it off the notches (of the poppy-capsule) with a small iron blade, and place it within a clay receptacle ". He adds: " It seems that nothing has changed in the method of collecting opium ".
Glenn Sonnedecker [ 130] mentions that the " Hul Gil " is found in earlier Sumerian tablets of the fourth millenium B.C., the expression meaning "plant of joy ", while Raymond P. Dougherty [ 131] believes that it denotes opium.
Terry [ 132] shares Thompson's view and adds that in the Assyrian Berbal the term Arat. Pa. Pa. occurs. This, according to Thompson, is the Assyrian name for the juice of the poppy and suggests that it may be the etymological origin of the Latin papaver.
The Eastern goddess Nisaba is often shown in Assyria and Babylon with poppies growing out of her shoulders. According to Professor Marinatos, [ 133] this deity survived until the archaic period of the Bœotian jars.
The poppy and the Persians
Neligan [ 134] states that " No great imagination is required to suppose that in the Sumerian or the early Babylonian period some neighbouring peoples living in the future land of the Persians were aware of so amazing a drug as opium. It is more than likely that the ancient Persians inherited this from Assyria or Babylon, just as they acquired a great part of their civilization by the conquest of those states. Yet it is only in the sixth century B.C., that opium is mentioned in any Persian text ".
In any case the cultivation of the poppy was very ancient. Opium was called theriac ( malidéh or afiuum) by the Persians. [ 135]
The poppy and the Hebrews
The Hebrews, as a people living in an area where the poppy and its juice were known from remote antiquity, cannot but have been cognizant of their uses.
Many studies have been made on the plants of the area, and are included in certain books of the Bible, and particularly in the Talmud.
Professor Marti [ 136] of Switzerland has studied these and avers that among them are included the papaver somniferum or setigerum (seeds and oil).
Rindley [ 137] (1900) mentions various plants from the Bible and among them " rosch " (head), which he interprets as being the capsule of the papaver setigerum. This, according to him, was the gall mixed with vinegar which the Hebrews gave to Christ on the cross in order to alleviate His suffering.
Furthermore Miss Walker [ 138] states that the gall which was added to the vinegar was the juice of the hypnotic poppy, called rosch in Hebrew.
The poppy in India
The poppy was known in Macedonia before the time of Alexander the Great (fourth century B.C.) and thus Bergmarck's [ 139] assertion that the method of extracting the juice was learned by the Greeks from Indian sources is incorrect. On the contrary, we maintain that Alexander the Great took with him to India the drugs which he used for the needs of his army. This is recorded by the chroniclers of the time. It could be that knowledge pertaining to opium was carried to India by Alexander - not the converse. But there is no proof that opium was used in India during this period, and perhaps a special study should be made on the earliest origins of the cultivation of the poppy in India.
In the Far East [ 140] (China and Japan), the poppy is said to have been introduced in the seventh-eighth century A.D., whereas in India it seems to have been introduced much later, via Persia and Arabia. The texts show that it was unknown there in A.D. 671-695. [ 141]
The information gathered from the texts to the effect that opium was not known in India before the seventh century A.D., does not preclude the possibility of its having been known earlier, since Greek medicine in the third century B.C., has acquired many Indian drugs, and conversely many Greek drugs had been introduced to Indian physicians. Thus, opium, which in the time of Hippocrates was known both in Greece and in Egypt, might well have reached India.
[ To be concluded]1
Hesiod, Theogony, 11.535-537.2
Hesiod, Theogony, 11.535-537. Interpretation by Karl Sittl in the edition of the Zographeios Hellenic Library (Constantinople, 1889).3
The Great Etymological Dictionary under "mekon" (poppy). According to Stephanos Byzantios, under "Sikyon" Mekonê was also called Telchinia.4
Joh. Gottlob Schneider, Orpheus's Argonautica, 1803, 11.914-915.5
Iliad IX, 306-307.6
Odyssey X, 220-232.7
Theophrastus, History of Plants, IX 15. 1.8
E. Emmanuel, Homer's nepenthes, Minutes of the Academy of Athens, 1952, pp. 541-553.9
Diodorus Siculus, I 97. 30: "For the drug nepenthes, which the poet says Helen received from the Egyptians of Thebes and specifically from Polydamna, wife of Thon, appears to have been genuinely ascertained; for even now the women of that city are said to use it for its aforementioned powers; from ancient times only the women of Diospolis were said to have found a drug against anger and grief, and Thebes and Diospolis were the same city."10
Theophrastus, op. cit., IX 9. 16. 8 ... "which produced an easy and painless end; he used the juices of hemlock, poppy and other such herbs, so compounded as to make a dose of conveniently small size, weighing only one drachma."11
Œuvres complètes d' Hippocrate. On internal diseases, chapter 12. Littré, Paris, 1840-1849.12
Ibid., On Women's Ailments, chapter 192.13
Ibid., On the Nature of Women, chapter 58.14
Ibid., On Epidemics II, chapter 118; On Diet, chapter 39; On the Nature of Women, chapter 33; On Women's Ailments, chapter 20.15
We note that the contradiction between styptic and cathartic may be explained by the fact that the ancients used the term mekonion to include also the juice of the spurge (lat. èuphorbium peplus). Pliny the Elder (A.D. 23-79). NH XX 76. 19. 53 states that the juice of the spurge and the poppy were given the same name (mekonion) by the ancient Greeks. He was the first to use the term opium for the juice of the poppy. He describes both products of the poppy, i.e. its juice - opium, the preparation of which he defines - and the extract of the poppy - the raw juice.16
Aristotle, Physica Minora, 456B, 30; Historia Animalium I, 6276, 18.17
Theophrastus, op. cit., I 1.9.4. - 1.11.2. - 1.12.2. -4.8.7. snf 10. - 4.10.3. - 9.8.2., and II 2.12.1. - 184.108.40.206
Ibid., I 9.11.9. - 220.127.116.11
Ibid., I 18.104.22.168
Ibid., I 9.12.5. - 22.214.171.124
Alex Tschirch, Pharmakognosie, III/I, 1923, p. 645.22
Theophrastus op. cit., I 9. 8. 2. In the extract quoted above it is the juice of the poppy, i.e. opium, that is defined as mekonion.23
Fr. Hist. Gr. II. 215, Fragment IX 3.24
The Keian custom was euthanasia, practised on the island of Keos. It was practised in other areas also. Those who reached a certain age voluntarily put an end to their life by drinking poison after a ceremonial banquet; thus they avoided the illnesses and pains of old age. Cf. Valerius Maximus. II 6. 8, and Gabriel Welter, Aristeides, Lawgiver of Keos, Archaeological Journal, 1953-1954, Vol. III, pp. 158-159.25
Most writers mention hemlock as the means of euthanasia in Keos. However, as stated on page 4, Thrasyas of Mantineia affirms that a speedy and painless death can be obtained from the juice of the poppy or of hemlock, and this supports the use of the poppy by the Keans, as aforementioned.26
I. Thalysia, 157." Bearing sheaves and poppies in both hands ". The use of the Doric form "makon" for "mekon" is obviously the origin of the modern popular name "makos" given to the poppy in many rural regions of Greece today.27
Alex. Tschirch, op. cit., III/I, p. 645.28
Pedacii (read Pedanii) Dioscoridis Anazarbaei, Opera quae exstant omnia. Ed. by A. Wechel, p. 267. On the other hand, in other editions of Dioskourides it is stated that Diagoras says that Erasistratos disapproved of the use for ... (Pedanii Dioscuridis Anazarbei, De Materia Medica, I 64.6 (Ed. Max Wellmann, Berlin, 1958).29
Dioskourides, op. cit., I 64.6.30
Alex Tschirch, op. cit., III/I, p. 645.31
Nikandros (Nicander). (Edited by A. S. F. Gow and A. F. Scholfield, Cambridge, 1953), Georgics: Fragment 74, 11.43 seqq.32
Nicander, Alexipharmaca, 11.431-436. We have a translation of this passage by Euteknios the Sophist (Nicander, Editio Florentina ex Officina Moevckiana, 1763, p. 430): "Those who drink the juice of the poppy which carries its seed in the head suffer as follows: they sleep deeply, a chill comes over their extremities, their eyes are closed, they perspire profusely ...".33
Dioskourides, op. cit., IV 64. 1 & 3.34
Ibid., IV 65. 1-7.35
Ibid., IV 65. 7.36
Ibid., IV 66.37
Ibid., IV 67.38
E. I. Emmanuel apud Alex Tschirch, Pharmakognosie, Vol. I/III, Leipzig 1923, p. 1309 and independently. A comparative study of the plant drugs portrayed in the Constantinopolitan Code39
Claudii Galeni, Medicorum Graecorum opera quae exstant, Leipzig, 1826.40
Ibid., Vol. XII 72.41
Ibid., Vol. I 548.42
Ibid., Vol. XIII 272.43
Ibid., Vol. XII 72.44
Ibid., Vol. XIII 273.45
Nicander in Athenaios XV 683-684a (Ed. Kaibel, 1962) and Nicander's Georgics, frag. 74 11. 43. Cf. footnote 31 above.46
" Within the Altis stand the Metroon and a circular building called the Philippeion; on the summit of the Philippeion there is a bronze poppy holding the beams together". ( Pausanias V 20.9).47
"It is made of gold and ivory; on the goddess's head is a globe, and in one hand she holds a poppy, and in the other an apple" ( Pausanias II 10. 5).48
Alex Tschirch, op. cit., III/I, p. 645.49
Pliny NH XX 77.50
It is also called euphorbia peplis by some51
P. G. Kritikos, Der Mohn, das Opium, u. ihr Gebrauch im Spaetminoicum III, Bemerkungen zu dem gefundenen Idol der Minoischen Gòttheit des Mohns, Archives of the Academy of Athens 1960, pp. 54-73, and independently.53
S. Marinatos, The Minoan goddesses of Gazi, Journal of Archœology (Greece) 1937, Vol. I, pp. 278-291, and S. Alexiou, The Minoan goddess with uplifted hands, Doctoral thesis, copy from Vol. XII of the Cretan Chronicles, 1958, pp. 179-299, and independently.54
See also footnote 52 above.55
S. Marinatos, Arch. Journal, 1937. Vol. I, p. 284, fig. 6.56
Alex Tschirch, Handbuch der Pharmakognosie I/III, 1932, p. 1933, fig. 746.57
Alex Tschirch, op. cit., Vol. III/I, 1923, p. 631.58
On a container of coca leaves from an ancient Peruvian tomb we have a similar portrayal of a smile. This container represents a head revealing a closely similar smile as coca leaves are being chewed. It is known that coca leaves were widely used during religious ceremonies by the inhabitants of Peru. See fig. 3: Container of coca leaves from a Peruvian grave Tschirch).59
Christian Zervos, L'art de la Crète, Paris, 1957; figures 739 and 740.60
Ibid., p. 47.61
Arch. Journal, 1904, pp. 29-31, fig. 7, and P. Jacobsthal, Greek Pins and their Connections with Europe and Asia, 1956, p. 1, fig. 2.62
Christian Zervos, op. cit., p. 47.63
S. Marinatos, Arch. Bulletin 11, 1927-1928, p. 78.064
R. S. Merrillees , Opium Trade in the Bronze Age Levant, Antiquity 36, 1962, pp. 287-292.065
The Bronze Age begins c. 1500 and extends to 1100 B.C.66
Dating from the end of the fifteenth century B.C. (XVIIIth Dynasty, and later).067
Walter Hahland ( Neue Denkmaeler des attischen Heroen u. Totenkultes, Berlin 1954, p. 187) agrees that certain vases presumed to have been modelled on the fruit of the pomegranate were actually modelled on that of the poppy, as, e.g., two in the National Museum at Naples (Johansen, Les vases Sicyoniens, plate VIII, 3).68
R. S. Merrillees, op. cit., p. 290.69
Saber Gabra, Papaver Species and Opium through the Ages, Bulletin de l'Institut d'Egypte, 37, 1956, pp. 39, 45 and 46.70
Ibid., pp. 43 seqq.7l
E. Sciaparelli, La Tomba Intatta dell' Architetto Cha nella Necropoli di Tebe, Torino, 1927, p. 154.72
Documents Nos. 108/36 dated 21/1/64 and 108/36 dated 8/2/64 of the Department of Antiquities at Nicosia. Photographs supplied by B. Karagiorgis, Director of Antiquities, Cyprus.73
BCH 84, 1960, p. 271; Chronique des fouilles à Chypre en 1959, fig. 45.74
p. Jacobsthal, op. cit., p. 38.75
Arthur Evans, The Palace of Minos, Vol. II, Part I, London, 1928, Fig. 194a, p. 341. See also S. Marinatos , The Creto-Mycenæan Religion, Athens, 1948, pp. 82-83. M. P. Nilsson, The Minoan-Mycencean Religion, London, 1950, p. 347, fig. 158.76
p. Jacobsthal, op. cit., figs. 140, 141.77
G. Karo, Schachtgraeber von Mycenae, Munich, 1930/33, plate XXXI, fig. 103.78
P. Jacobsthal, op. cit., fig. 139.79
Archaeological Journal 1889, p. 150, plate 7/4. The pin is at the Archaeological Museum in Athens among the Vaphio exhibits, sub. No. 1814.80
Information communicated personally by Professor Marinatos.81
Ch. Waldstein, The Argive Heraeum, p. 37 (197), plate XLVI No. 16, p. 34 (172) plate XLVI, No. 4 and p. 34 (163), plate XLVI, No. 3.82
Pausanias II 17.5 & 10.5.83
Ch. Waldstein, op. cit., p. 112, plate LVII, fig. 5; p. 210, plate LXXVIII and LXXIX, Nos. 184 and 184a.84
Ch. Dugas, Le Sanctuaire d'Aléa Athéna à Tégée avant le IVe siècle, BCH 45, 1921, pp. 384-385, fig. 45.85
G. Oikonomos , The Worship of Athena Nike on the Acro-polis, Archaeological Society, 1939-1941, p. 104.86
Arch. Anz., 37, 1922, 15.87
G. Oikonomos, op. cit.88
Dugas, op. cit.89
Berytus 9, 1949, 85; v. also P. Jacobsthal, op. cit., p. 185.90
Corinth XV i, plate 49, fig. 40, and Ch. Dugas, op. cit.; pp. 378-9, figs. 40, 41.91
Ch. Dugas, op. cit., pp. 369-372 (Nos. 99, 97 and 81).92
Cf. p. 19 of the present study.93
R. M. Dawkins, The Sanctuary of Artemis Orthia at Sparta, London, 1929.94
Ibid., plate CLXXIX, fig. 6. Cf. S. Cabra, Bulletin de l'institut d'Egypte 37, 1956, p. 42, fig. 4.95
R. M. Dawkins, op. cit., plate CXXXV.96
Ibid., plate LXXXIX, h.97
BSA 15, 1908-9, p. 148, plate IX, 15, 17.98
Ibid., p. 142, plate VIII, 9.------ 99
P. Jacobsthal, op. cit., figs. 514, 515.100
Cf. p. 19 of the present study.101
S. Marinatos, The Creto-Mycenæan Religion (Mimeographed lectures), p. 85 (Athens, 1948). He thinks it probable that as Athens received its name after the goddess Athene, so Mycenæ may have been named for a hypothetical goddess Mykene, and Mekone for some forgotten goddess, Mekone (pp. 131, 132).------ 102
Cf. pp. 21, 22 of the present study.103
N. Verdelis, Archœological Journal, 1956; Chronica, p. 10; and Archœology, 1962, p. 190.104
We thank Mr. N. Verdelis for the photograph of the statuette, and we append an extract from his remarks concerning it: " A bronze statuette of a man standing, representing a shepherd or peasant according to the known type of Arcadian statuettes. It was found in 1962 at Triantaphyllia, about 5 kilometres to the south of ancient Pheneos (now the village of Kalyvia). It is now in the Nauplion Museum, Exhibit No. 13874...".105
Corinth XII, plate 118, Nos. 2292, 2291, 2293, 2294, 2295 and 2296.106
Gabra, Bulletin de l'Institut d'Egypte, 37, 1956, p. 43, fig. 4107
Payne, Perachora, The Sanctuary of Hera Akraia and Limenia, plate 188, A 288-290, 293, 298, 307, plate 798, 16-18.108
Ibid., plate 188 A 315.109
G. P. Oikonomos, BCH 70, 1946, pp. 403-417.110
Ibid., p. 410.111
Hesperia, Suppl. II, p. 129, fig. 92 (Athens, 1959).112
Cf. p. 21 of the present study.113
Cf. p. 20 of the present study.114
G. Daux, Chronique des fouilles et découvertes archéologiques en Grèce en 1960, BCH 85, 1961, p. 777, figs. 8 and 9.115
We note that the poppy (mekon) is still known today in Macedonia under the name "makes", derived etymologically from the Doric form makon.116
P. Jacobsthal, op. cit., p. 3, fig. 8.117
Schmiedeberg, Über die Pharmaka in der Ilias u. Odyssee, Strasbourg , 1918.118
Woering, Die Pflanzen des alten Aegypten, Leipzig 1886, pp. 225-226.119
Cf. Saber Gabra, Papaver Species and Opium through the Ages, Bulletin de l'Institut d'Egypte 1956, p. 40; and H. R. Hall, Journal of Egyptian Archaeology 14, 1928, pp. 203-205.120
S. Gabra, op. cit., p. 40. With regard to the above observation we note that morphine, a component of opium, was unknown; hence its discovery in the ointment presupposes the presence of opium therein.121
Ibid., p. 41.122
Ibid., p. 38.123
They call the capsules sheppen and the flowers shepenndšr.124
S. Gabra, op. cit., p. 54.125
Ibid., p. 45.126
The Sumerians lived in the area between the Tigris and the Euphrates in the lower half of present-day Iraq. They flourished from the fourth to the third millenium B.C. and developed great proficiency in the arts, agriculture, and sciences in general. The Sumerians were responsible for the first written records (discovered by the University of Pennsylvania Mission) in the form of white clay tablets of varied content (economics, politics, law, literature, ethics, zoology, botany, medicine, pharmaceutics, etc.).127
H. J. Anslinger and W. F. Tompkins, The Traffic in Narcotics, New York 1953, p. 1.128
C. E. Terry," The Opium Problem ", New York 1928, p. 54.129
The Babylonians developed a great civilization as is evident from their very ancient monuments (cf. A. Tschirch, op. cit., 1933, I/III, p. 1190). A picture of this civilization is given by the Kujundschik library belonging to the neo-Assyrian period, and composed of 22,000 tablets of white clay. These were excavated by Layard and are now in the British Museum. They formed the Assyrian library of King Sardanapalus (Aschurbanipal, 668-626 B.C.) in his capital at Nineveh. Reginald C. Thompson studied the tablets ( Assyrian Herbal, London, 1924, pp. 46, 251, 261 and 269). He states that they are copies of older texts, deducing this from their similarity to the medical tablets found at Ashur and dated a few centuries earlier. In a catalogue of the 115 commoner plant drugs mentioned, opium occurs forty-two times and holds the thirty-third place as regards frequency of mention.130
Glenn Sonnedecker, " Emergence of the Concept of Opiate Addiction ", Journal mondial de Pharmacie, 3, 1962, 277.131
C. E. Terry, op. cit., p. 54, and G. Sonnedecker, op. cit.132
C. E. Terry, op. cit., p. 54.133
Lectures by Professor Marinatos, Creto-Mycenæan Religion, 1948 pp. 84, 85.134
C. E. Terry, op. cit., p. 54.135
A. Tschirch, Handbuch der Pharmakognosie III/I, Leipzig, 1923, p. 647.136
A. Tschirch, op. cit., I/III, 1933, p. 1208.137
Ibid., p. 1209.138
Winifred Walker, The Plants of the Bible, London 1959, p. 88.139
M. Bergmarck, Lust und Leiden durch Drogen, Stuttgart, 1958, p. 48.140
A. Tschirch, op. cit., III/I, 1923, p. 648.141
Ibid., p. 647.071 r104
